TYPE | Fire Hose Type 3 |
SIZE | 63 mm |
HOSE DESIGN STD | IS : 636 |
LENGTHS | 7.5, 15, 30 Mtr |
MATERIAL | Rubber Lined Woven Synthetic Jacketed type conforming to IS:636 Type 3 |
WORKING PRESSURE (HOSE) | 14 Kgf/cm2 |
BURST PRESSURE (HOSE) | 35.7 Kgf/cm2 |
PROOF PRESSURE (HOSE) | 21.4 Kgf/cm2 |
COUPLING DESIGN STD | IS : 903 |
COUPLING SIZE | 63mm DIA (Nominal diameter) |
END CONNECTIONS | Instantaneous Male and Female (Fitted with coupling ends by copper Wire) |
COUPLING MOC | AVAILABLE IN GM / SS / AL MOC |
APPROVAL | ISI MARKED |

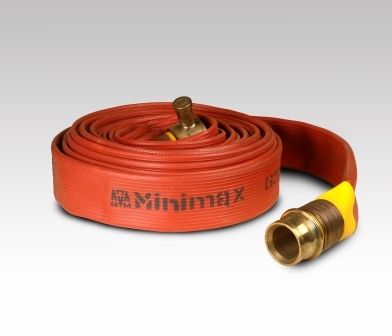

"Minimax" ISI marked non-percolating flexible fire fighting delivery hose, synthetic fiber circular woven jacketed, with NBR-PVC rubber lined & externally covering, 42 kgf/cm2 burst pressure, 25 kgf/cm2 proof pressure, 15 kgf/cm2 working pressure, very low absorption of liquids such as oils, greases, acids and alkalis etc and high resistance to abrasion & direct heat, bearing IS:636-2018 Type 3 (Covered), CE marked, 63 mm dia., complete with instantaneous male & female coupling (IS:903), and Copper Wire binding.
