TEC Powder D Class Type
Minimax TEC Powder (D Class) Type fire extinguishers are specially manufactured to fight reactive metal fires. These extinguishers are suitable on fire risk from reactive metals like Li, Na, K, Mg, Al powders & paste, Ti, Fe and their alloys. TEC based dry powder is used as an agent which is formulated eutectic mixture of 3 (ternary) salts.
Minimax D-Type extinguishers are unique in design to serve a very specific requirement and has low velocity lance-like applicator nozzle with internal radial fins which diffuses pressure and ensures gentle application of powder without metal splashing. Although dry powder extinguishers are recognized for their ability to effectively and efficiently tackle a range of fire types, Minimax D-Type must only be used on class D fires.

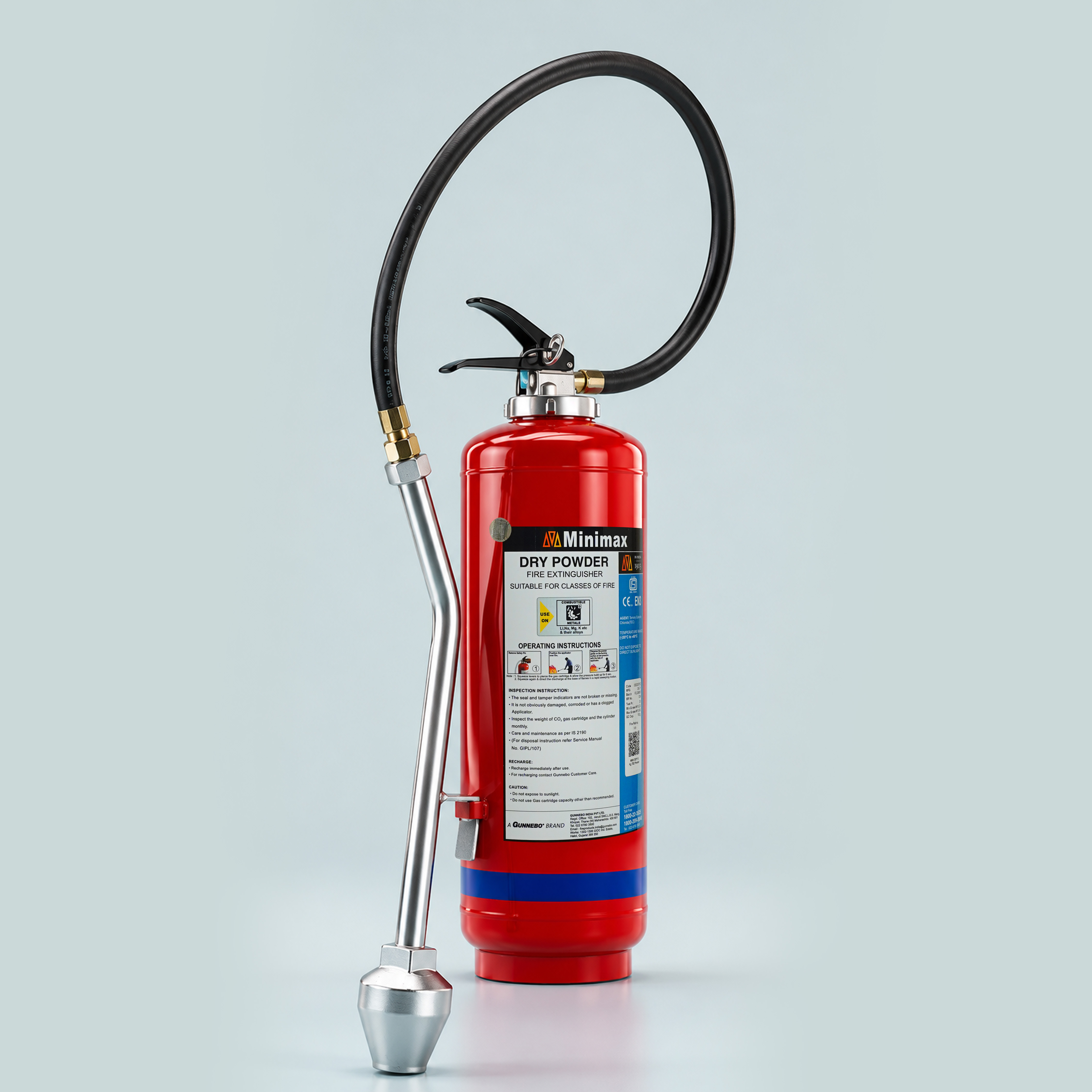

Minimax TEC Powder (D Class) Type fire extinguisher is available in gas cartridge portable type 10 Kg capacity and is BIS approved.
Application Area
- Metal processing industries
- Aluminum, magnesium, sodium, potassium handling areas
- Foundries and casting units
- Laboratories dealing with combustible metals
Enquire Now
For product: TEC Powder D Class Type
- Technical Specification
- FAQ
| Specifications | 10 kg |
| Working Temperature °C | -30 °C to +60 °C |
| Burst Pressure | 55/80 bar min., 110 bar (actual) approx |
| Cylinder Testing Pressure | 35 bar |
| Min. Effective Discharge Time | 13 sec. |
| CO2 Gas Cartridge | 180 gms. |
| Charge | Dry Chemical Powder (TEC) |
| Applicator | Specially designed Cast Aluminium nozzle with radial fins internally |
Key Features
Specially formulated TEC powder for combustible metal fires
Controlled discharge using gas cartridge mechanism
Prevents oxygen contact and heat spread
Heavy-duty construction for industrial environments
