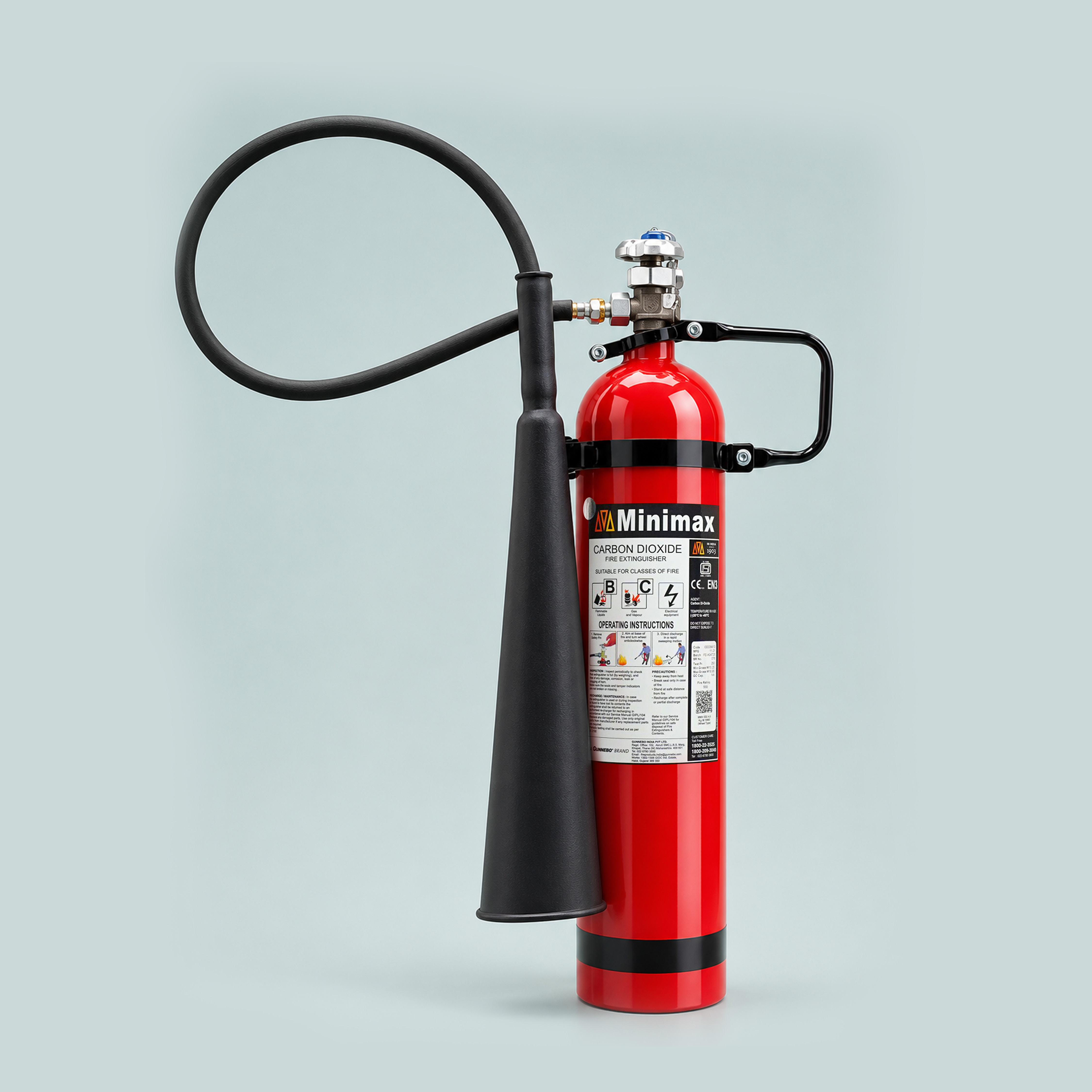

Carbon Dioxide Type AL Body
Minimax Carbon dioxide Type fire extinguishers with Aluminium cylinder body are up to 30% lighter in weight compared to seamless steel cylinders makes it convenient for maneuvering as well as easy to handle in case of use. Aluminium has no ferrite properties, so it is highly corrosion resistant so preferred for usage in special places like coastal and high salinity environments.
Carbon dioxide is effective on Class B (flammable liquids) fires involving flammable liquids such as petrol, spirits and diesel and equally effective on electrically actuated fires. Carbon dioxide fire extinguishers carry black colour coded band denoting the extinguisher type and contents to help quick identification in the event of a fire.
Carbon dioxide Type extinguishers becomes very cold while operating and present a danger to the safety of operator. Minimax Carbon dioxide fire extinguishers are supplied with rubber grip and specially designed horn, taking away the chances of unwanted injury and cold burns. Discharge hose with conductive wires helps to dissipate the static that is generated in the horn due to high pressure.
Minimax Carbon dioxide fire extinguishers are filled in-house in Gunnebo’s own PESO approved filling station to ensure highest level purity of the agent.
Application Area
- Server rooms and data centers
- Telecommunication rooms
- Office spaces
- Laboratories and research facilities
- Clean and sensitive environments
Enquire Now
For product: Carbon Dioxide Type AL Body
- Technical Specification
- FAQ
| Specifications | 2 kg | 4.5kg |
| Fire Rating | 21B | 55B |
| Working Temperature °C | -30 °C to + 60 °C | |
| Burst Pressure | 337.5 bar min., 350 bar (actual) approx | |
| Cylinder Testing Pressure | Min. 190 bar | |
| Operating Pressure | 50 bar | |
| Min. Effective Discharge | 13 sec. | |
| Charge | Carbon Dioxide Gas | |
| Cylinder MOC | Aluminium grade 6061 | |
| Cylinder Design | As per IS 15660:2017 | |
Key Features
Lightweight aluminum alloy cylinder
Residue-free and clean fire extinguishing agent
Corrosion-resistant body for long service life
Easy handling and quick discharge
Ideal for offices and electronic equipment protection
